Videojet 7610 Laser engraver machine
Laser Marking Systems
100-Watt Fiber Industrial Laser Printer for Marking highly legible, permanent codes at ultra-fast line speeds.
The Videojet 7610 100-Watt fiber laser marking system leverages the proven and extremely successful fiber product line from Videojet. The laser marking system now delivers extended speed capabilities to mark crisp, clear codes on robust plastic packaging, metal containers and other industrial products at up to 600m/min. The 7610 laser has been specifically engineered for high speed beverage, pharmaceutical, and extrusion manufacturers marking on robust materials such as high-density Polyethylene (HDPE), Nylon, Polyvinyl Chloride (PVC), as well as aluminum and stainless steel metals.
Contact us for New Equipment Sales: 7506345599
Specs
| Value | |
| Laser Tube | Ytterbium (Yb) pulsed fiber laser |
| Maximum Power | 100-Watt |
| Laser Cooling | Air Cooled |
| Maximum Line Speed | 600m/min (1968 ft/min) |
| Environmental Protection | Marking Unit: IP54 Supply Unit: IP22 |
| Beam Output | Steered Beam |
| Laser Source Expected Life (MTBF) | Up to 100,000 hours (MTBF) |
| Laser Wavelength Options | 1.06µm – 1.07µm |
| Focal Distance Options | 100/163/254/420mm (3.93/6.41/10/16.53in) |
| Maximum Mark Window | 498.5 x 366.5 mm (19.62 x 14.43 in) |
| Standard I/O Connectivity | Internal Terminal Connections |
| Standard User Interface | Smartgraph PC software |
| Certifications/Approvals | CE TUV |
Benefits
Uptime advantage through highly efficient laser source
- Maximum performance and laser source life expectancy up to 100,000 hours (mean time before failure)
- Air-cooled laser source virtually eliminates maintenance intervals
- No wear parts minimizes downtime
Increase productivity and mark more content at higher speeds
- Optimized to mark-on-the-fly at lines speeds up to 600 m/min
- Large marking window provides more time to mark, increasing throughput and maximizing productivity
Mark the right codes time after time
- High precision scan head delivers consistent high quality codes across the entire mark window
- Permanent codes help assure product traceability and tamper-proofing
Simple usability and seamless integration
- Compact mechanical design with flexible configuration options ensure a seamless fit into packaging line
“You just turn the switch on and it just works, every time.”
Operator – Automotive fluid storage, carrying and delivery manufacturer (case study)
Applications
Resources
Documents
Videojet 7610

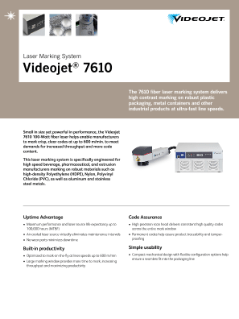

Spec sheet
Videojet Fiber Laser Sample Marking Guide
Laser Product Range
Brochure

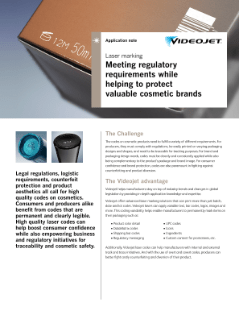

Meeting regulatory requirements and helping protect valuable cosmetic brands
Related Products
| Videojet 7510 Fiber Laser Marking Machine  | Videojet 7610 Fiber Laser Marking Machine  | |
| Description | Small in size yet powerful in performance, the Videojet 7510 (50-Watt) and 7610 (100-Watt) fiber laser helps enable manufacturers to mark crisp, clear codes at up to 600 meters per minute to meet demands for increased throughput and more code content. | |
| Shared specs | – Commonly used for marking HDPE and LDPE plastics, PE and PPE plastics, synthetic fiber materials, acrylic, glass and silicone, and automotive and aerospace parts – Air cooled | |
| Max line speed | 600m/min (1960ft/min) | |
| Max power | 50-watt | 100-watt |
| Wavelength options | 1.06µm – 1.07µm | |
| Max mark window | 498.5 x 366.5 mm2 (19.62 x 14.43 in) | |
| Certifications/approvals | CE, TÜV/NRTL, FCC, EAC | CE, TÜV/NRTL, FCC |
